YM11980812520 3EB0238730 Excavator Air Filter Excavator Parts
Specifiion
| Item | BA6605AB |
| Type | Excavator Air Filter |
| Part No. | YM11980812520 3EB0238730 |
| 3EB0238730 |
| Applicable Models | YANMAR AIR FILTER |
| KOMATSU PC50-7 |
| HITAHCI EX50 |
| HITACHI ZX35 |
| HITACHI ZX50 |
| HITACHI ZX55 |
| LOVOL FR39-7 |
| YUCHAI YC35 |
| YUCHAI YC55-8 |
| YANMAR 35 |
| YANMAR 55 |
| TAKEUCHI 140 |
| ZHANYANG JY35 |
| ZHENYU ZY35 |
| ZHENYU ZY55 |
| Size A(H:OD:ID) | 270mm : 105mm : 64mm |
| Size B(H:OD:ID) | 260mm : 61mm : 44mm |
| Function | Gas Filtration |
| Structure | Filter Element And Housing |

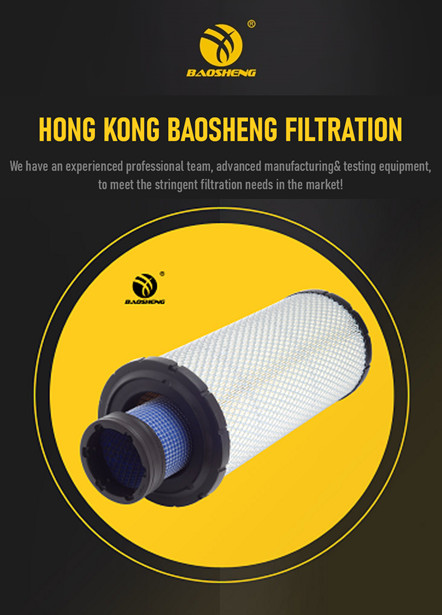

Description
Our products are designed with a main filter element and a safety filter element, which can efficiently filter the air entering the engine, promote full combustion of fuel, and ensure stable engine performance. It is also manufactured by a multi-station continuous mold, and a single component is completed at one time, with high dimensional accuracy and strong consistency.
When the engine is working, it needs to suck in a lot of air. If the air is not filtered, the dust suspended in the air is sucked into the cylinder, which will accelerate the wear of the piston group and the cylinder. Larger particles entering between the piston and the cylinder can cause serious "pulling the cylinder", which is especially serious in dry and sandy working environments. The air filter is installed in front of the carburetor or the intake pipe, and plays the role of filtering out dust and sand in the air, so as to ensure that sufficient and clean air enters the cylinder.

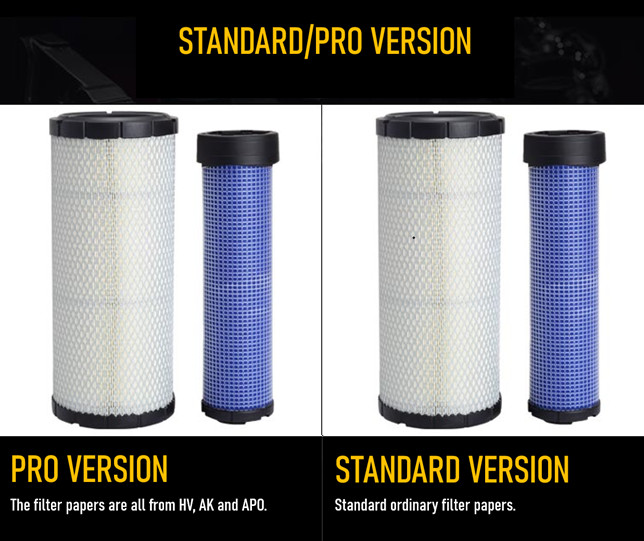

This product has two specifiions and models, filter element A and filter element B, A is a large size, B is a small size, so the prices of the two are not the same, different specifiions can be applied to different models and sizes, and the product diagram is only intuitive Display, the specific model size will be shipped according to the size selected by the customer.
Features
1 . Dedied Air Shroud, Baosteel Metal Mesh.
Air diversion design to maximize the filtration efficiency of the gas and prolong the service life of the filter.The metal mesh is made of Shanghai Baosteel sheet, with excellent compression and corrosion resistance.
2 . Special PU glue, Radial Seal For Reliable Performance.
The special PU glue is formed by one-time injection molding, with good flexibility, high and low temperature resistance, and stable sealing performance. Radial sealing process provides stable and reliable filtration performance for the filtration system.
3 . Strictly Follow The Original Requirements To Develop Better Products.
"Quality assurance, industry professionalism" has always been the concept we advoe. Only by making good products can we lead the industry. Hong Kong Baosheng Filter Co., Ltd. has professional designers and quality engineers with mature technical experience and a full set of imported professional filters.
Product Tags:
|
|
HITAHCI EX50 Excavator Air Filter 3EB0238730 Images
|
